Dynamic UPI QR Generator

NO TOKEN REQUIRED

Generate an amount-specific UPI payment QR with a single URL. Pass a UPI ID and amount, and get back a ready-to-display PNG. Fully public — no account, no token, no SDK.

The entire integration

This is not a simplified example — this is the whole thing. One <img> tag, nothing else.

HTML

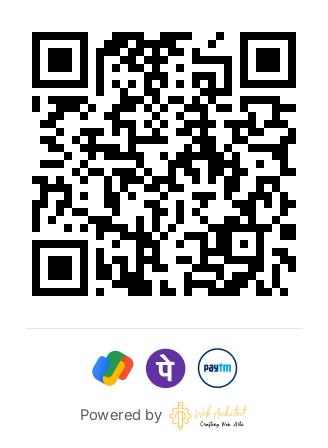

<img
  src="https://webarchitect.in/products/apiV1/upi/qr?vpa=merchant@upi&amount=499"
  alt="Scan to pay ₹499"
/>

No npm install. No <script>. No QR library. No Base64. No SDK. No backend integration. No UPI URI knowledge. Just an image URL.

Endpoint

GET /apiV1/upi/qr?vpa=merchant@upi&amount=499

Param	Required	Description
vpa	Yes	UPI ID of the recipient, e.g. `merchant@upi`. Accepts both `@` and its URL-encoded form `%40`.
amount	Yes	Payment amount in INR. Greater than zero, at most 2 decimal places.

No merchant name parameter in v1 — the receiving UPI app determines payee display as supported by the UPI ecosystem.

Response

On success, the raw PNG bytes — directly displayable, nothing to decode:

HTTP/1.1 200 OK
Content-Type: image/png

On a validation error, the platform's standard JSON error shape instead (see Errors below) — your <img> will show a broken-image icon in that case, so validate vpa/amount before rendering the tag if they come from user input.

Errors

Status	Code	Meaning
400	VPA_REQUIRED	vpa is missing.
400	INVALID_VPA	vpa doesn't look like a valid UPI ID.
400	AMOUNT_REQUIRED	amount is missing.
400	INVALID_AMOUNT	Not greater than zero, or more than 2 decimal places.
429	RATE_LIMITED	Too many requests from this IP — slow down.

{
  "success": false,
  "error": {
    "code": "INVALID_VPA",
    "message": "Invalid UPI ID."
  },
  "meta": {
    "request_id": "req_8f72c1a9..."
  }
}

Need help?

Email [email protected] — include your request ID from the response meta.request_id if you have one.

curl "https://webarchitect.in/products/apiV1/upi/qr?vpa=merchant@upi&amount=499" --output qr.png

const res = await fetch("https://webarchitect.in/products/apiV1/upi/qr?vpa=merchant@upi&amount=499");
const buffer = Buffer.from(await res.arrayBuffer());

await fs.promises.writeFile("qr.png", buffer);

import requests

response = requests.get(
    "https://webarchitect.in/products/apiV1/upi/qr",
    params={"vpa": "merchant@upi", "amount": "499"},
)

with open("qr.png", "wb") as f:
    f.write(response.content)

<?php
$png = file_get_contents(
    "https://webarchitect.in/products/apiV1/upi/qr?vpa=merchant@upi&amount=499"
);

file_put_contents("qr.png", $png);

HttpClient client = HttpClient.newHttpClient();

HttpRequest request = HttpRequest.newBuilder()
    .uri(URI.create("https://webarchitect.in/products/apiV1/upi/qr?vpa=merchant@upi&amount=499"))
    .GET()
    .build();

HttpResponse<byte[]> response = client.send(request, HttpResponse.BodyHandlers.ofByteArray());
Files.write(Path.of("qr.png"), response.body());

resp, err := http.Get("https://webarchitect.in/products/apiV1/upi/qr?vpa=merchant@upi&amount=499")
if err != nil {
    log.Fatal(err)
}
defer resp.Body.Close()

out, _ := os.Create("qr.png")
defer out.Close()
io.Copy(out, resp.Body)

Only needed if you want to download/cache the PNG server-side (e.g. for a PDF invoice). For a web page, the <img> tag above is the whole integration.
